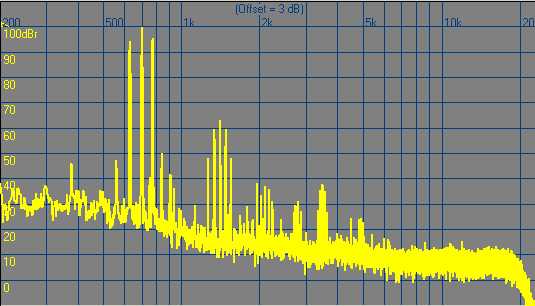

Full amplitude 700Hz + half amplitude 630Hz + half amplitude 770Hz:
(5.3VP, 2.29Vrms input signal)
|
|

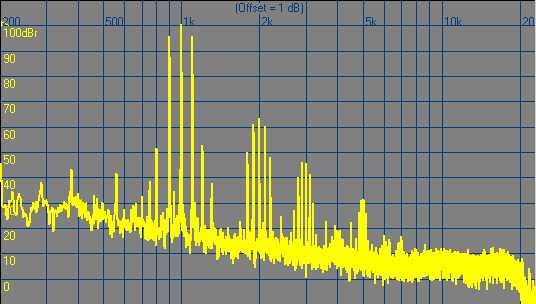

Full amplitude 1kHz + half amplitude 900Hz + half amplitude 1100Hz:
(5.3VP, 2.29Vrms input signal)
|
|
Full amplitude 2kHz + half amplitude 1800Hz + half amplitude 2200Hz:
(5.3VP, 2.29Vrms input signal)
|
|

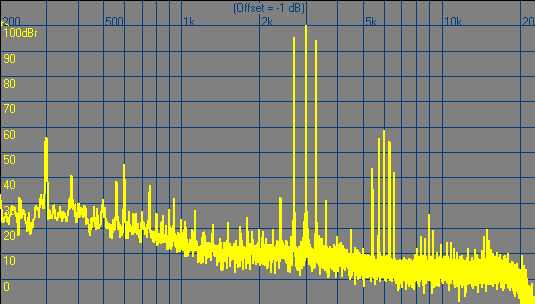

Full amplitude 3kHz + half amplitude 2700Hz + half amplitude 3300Hz:
(5.3VP, 2.29Vrms input signal)
|
|

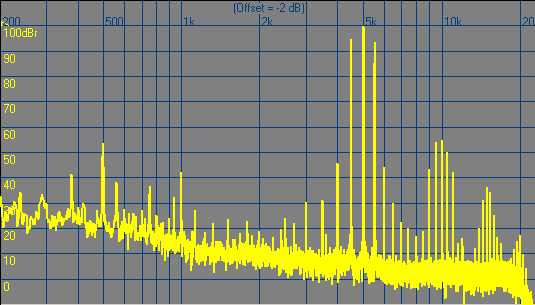

Full amplitude 5kHz + half amplitude 4500Hz + half amplitude 5500Hz:
(5.3VP, 2.29Vrms input signal)
|
|
Full amplitude 7kHz + half amplitude 6300Hz + half amplitude 7700Hz:
(5.3VP, 2.29Vrms input signal)
|
|

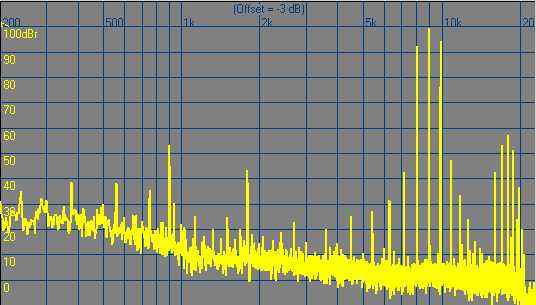

Full amplitude 9kHz + half amplitude 8100Hz + half amplitude 9900Hz:
(5.3VP, 2.29Vrms input signal)
|
|
Full amplitude 2kHz + full amplitude 8500Hz:
(5.3VP, 2.65Vrms input signal)
|
|

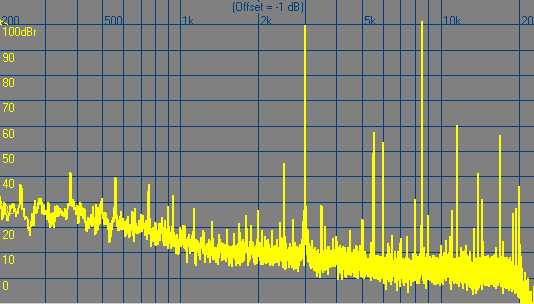

Full amplitude 3kHz + full amplitude 8500Hz:
(5.3VP, 2.65Vrms input signal)
|
|

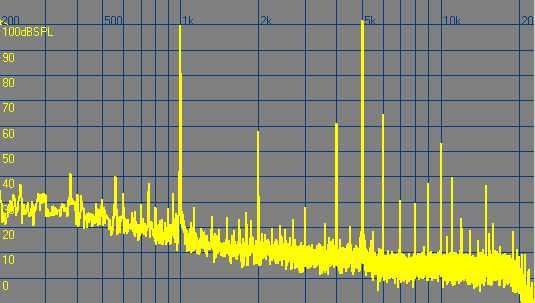

Full amplitude 1kHz + full amplitude 5kHz:
(5.3VP, 2.65Vrms input signal)
|
|

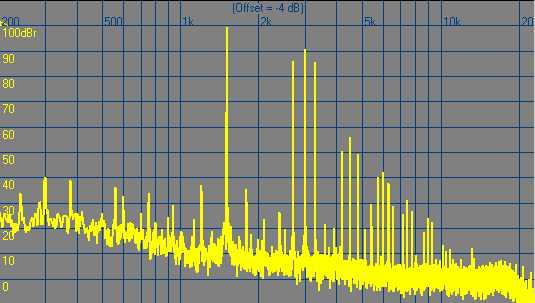

Full amplitude 1500Hz + half amplitude 3kHz + quarter ampliture 2700Hz + quarter amplitude 3300Hz:
(5.3VP, 2.16Vrms input signal)
|
|
